Product description

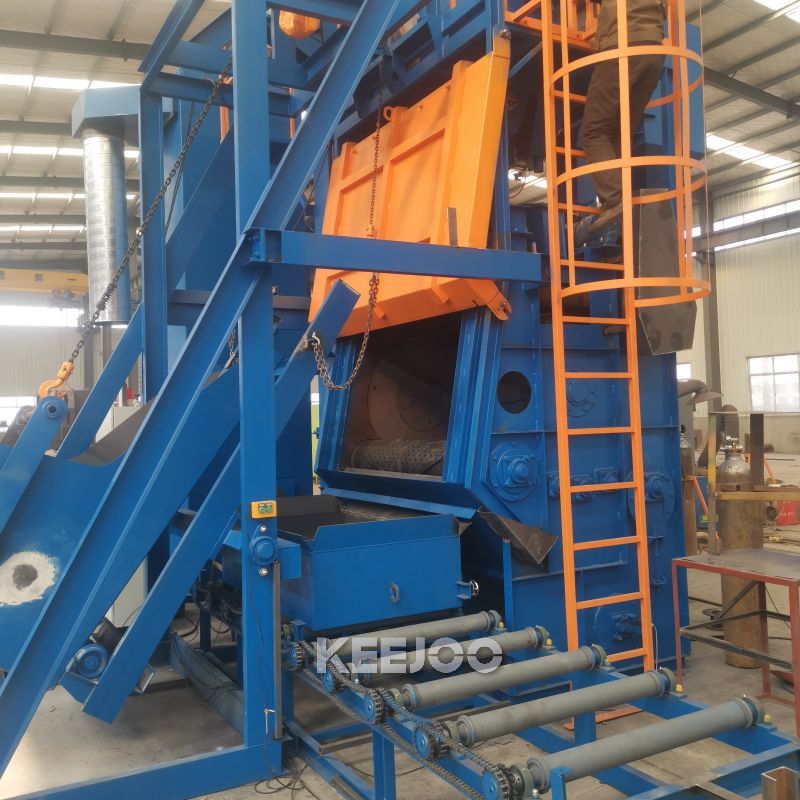

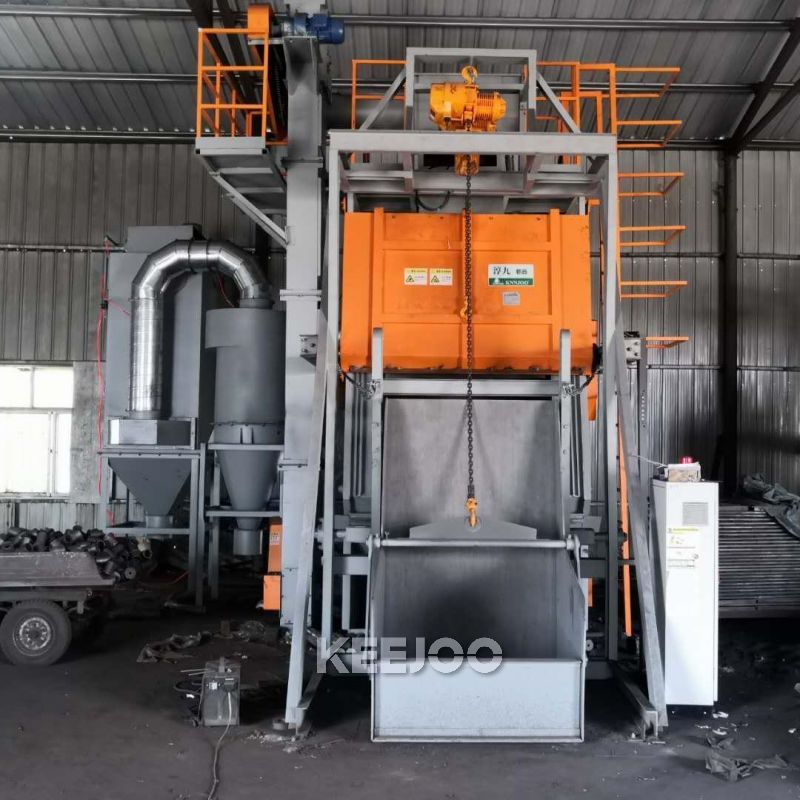

15Gn series steel belt shot blasting machine is used to remove the sticky sand, rust layer and scale, burr on the surface of castings, forgings and other workpieces that are easy to roll and fall, non-brittle parts that are not easy to be crushed, and the surface of the casting is not deep. Due to its good protection measures, strong shot blasting performance, and reasonable circulation system structure, it can also achieve satisfactory results for difficult-to-clean workpieces.

Technical data

Working principle

In the cleaning chamber, a designated number of workpieces are placed. Once the machine is activated, the high-speed blast wheel propels projectiles, forming a stream of projectiles that uniformly strike the surfaces of the workpieces, achieving the goal of cleaning and strengthening. The ejected projectiles and abrasive flow into the elevator and are lifted to the separator for separation. Dust is sucked into the dust collector by the fan, where it is filtered, and clean air is released into the atmosphere. The dust on the filter bags is mechanically shaken off into the collection box at the bottom of the dust collector, which users can clean periodically. The waste abrasive is discharged through the waste pipe, allowing for potential reuse by users. The mixture of projectiles and abrasive is collected through the reclaiming pipe and returned to the chamber. After separation by the separator, the clean projectiles enter the blast wheel through the electromagnetic gate for impacting the workpieces.

Feature

Strong durability: The steel track shot blasting machine adopts a steel track with high strength and abrasion resistance, enabling it to withstand high-intensity impact and wear, thereby extending its service life.

Wide adaptability: The steel track shot blasting machine is suitable for processing workpieces of various materials, including castings, forgings, steel plates, etc. It can clean workpieces of different shapes and sizes and handle various surface issues such as sand removal, rust removal, and scale removal.

Excellent cleaning effect: The high-speed rotating blast wheel of the steel track shot blasting machine can uniformly strike the workpiece surface with shot projectiles, effectively removing surface contaminants and defects, providing outstanding cleaning results.

High production efficiency: The steel track shot blasting machine adopts a continuous cleaning process, where the workpieces continuously roll on the track, enabling efficient cleaning. It can adapt to high-volume production requirements and provide stable cleaning efficiency.

Easy operation: The steel track shot blasting machine features an intelligent control system with a user-friendly interface, making operation simple and convenient. Operators can easily set and monitor machine parameters, enhancing work efficiency.

FAQ

Q1: Are you a trading company or a factory?

A: We are a manufacturer of shot blasting machines integrating industry and trade.

Q2: Does your product have CE certification?

A: Yes. We have CE certification.

Q3:Can I have your quotation?

A: Please provide us with your workpiece size information and production capacity requirements as much as possible, and then we will recommend a suitable machine for you.

Q4:How to operate and maintain the machine?

A: We will provide you with professional and detailed USERGUIDE of the machine and we also provide foreign technical training services.

Q5:Where is your factory located? How can I visit it?

A: Our factory is located in Qingdao city, Shandong province, China.

You can fly to Qingdao liuting Airport, we will pick you up.
