Industrial Catenary Shot Blasting Machine for Heavy-Duty Surface Cleaning
Product description
The catenary type shot blasting cleaning machine is also one kind of the shot blasting machines. The catenary type shot blasting cleaning machine is suitable for the shot blasting cleaning of small cast iron parts, cast steel parts, forgings and stamped parts. It is particularly suitable for the cleaning of forgings and castings to remove the adhering sand, rust, oxide skin, dirt, etc. on the surface of the workpiece, so that the surface of the workpiece presents the metallic color, eliminates the internal stress of the workpiece, improves the fatigue resistance of the workpiece, increases the adhesion of the paint film when the workpiece is painted, and finally achieves the purpose of improving the surface and internal quality of the workpiece.
Technical data
Parameter | HPS-2-15/1112-430 | HPS-2-15/1315-430 | HPS-3-22/1516-430 | HPS-3-22/1521-430 | HPS-4-22/1521-430 |
Turning diameterØ（mm） | 1100 | 1300 | 1500 | 1500 | 1500 |
Hook height （mm） | 1250 | 1500 | 1600 | 2100 | 2100 |
No. Of shot blaster | 2 | 2 | 3 | 3 | 4 |
Power of single shot blater（KW) | 15 (11) | 15 (11) | 22 (15) | 22 (15) | 22 (15) |
Advantage :
High-efficiency processing: It can quickly carry out continuous shot blasting cleaning on a large number of workpieces to improve production efficiency.
Uniform cleaning: Through catenary transportation, it ensures that all parts of the workpiece can receive uniform shot blasting impact, and the cleaning effect is good.
Strong adaptability: It can handle workpieces of various shapes and sizes, and has wide applicability.
Surface strengthening: While cleaning, it can play a certain strengthening role on the surface of the workpiece and improve the mechanical properties of the workpiece.
High degree of automation: The intelligent control system is convenient for operation and monitoring, and reduces manual intervention.
Stable and reliable: The sturdy structural design ensures the stability and reliability of the machine during long-term operation.
Working principle

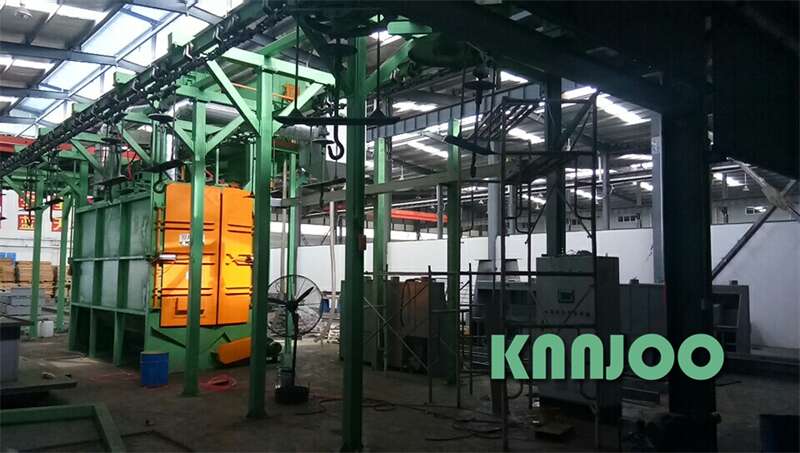

It uses a catenary device to continuously convey workpieces. In the shot blasting chamber, the high-speed rotating shot blasters accelerate and project the shots onto the surface of the workpieces. These shots impact the workpieces at a high speed, and through the actions of impact and friction, adherence such as the rust layer, oxide skin, and welding slag on the surface of the workpieces are removed, thereby realizing the cleaning of the workpieces. At the same time, the shot blasting process will also have a certain squeezing and strengthening effect on the surface of the workpiece to improve its surface performance. Throughout the process, the working state of the shot blasters and the conveying speed of the catenary are adjusted through the control system to ensure the best cleaning and strengthening effects.

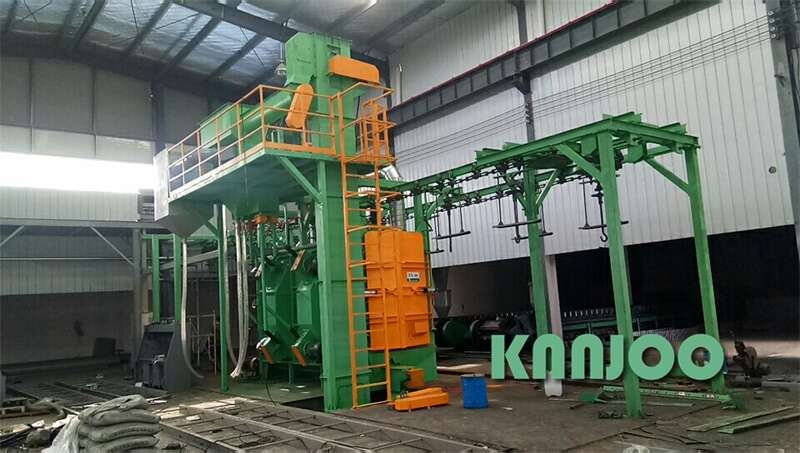

Construction
Shot blasting chamber: It is the main space for shot blasting cleaning.
Shot blaster: It is used to launch shots and is a key component to achieve cleaning and strengthening.
Catenary conveying system: Including chains, sprockets, etc., which is used to suspend and convey workpieces.
Shot material circulation system: Including hoists, separators, etc., to realize the recovery, separation and recycling of shots.
Dedusting system: It is used to remove the dust generated during the shot blasting process and keep the working environment clean.
Control system: It controls and adjusts the operating state of the equipment.
Chamber body: It plays a role of sealing and protection.
Protective devices: Such as sealing devices, to prevent the spillage of shots and the spread of dust.
