Catenary shot blasting machine
Product description

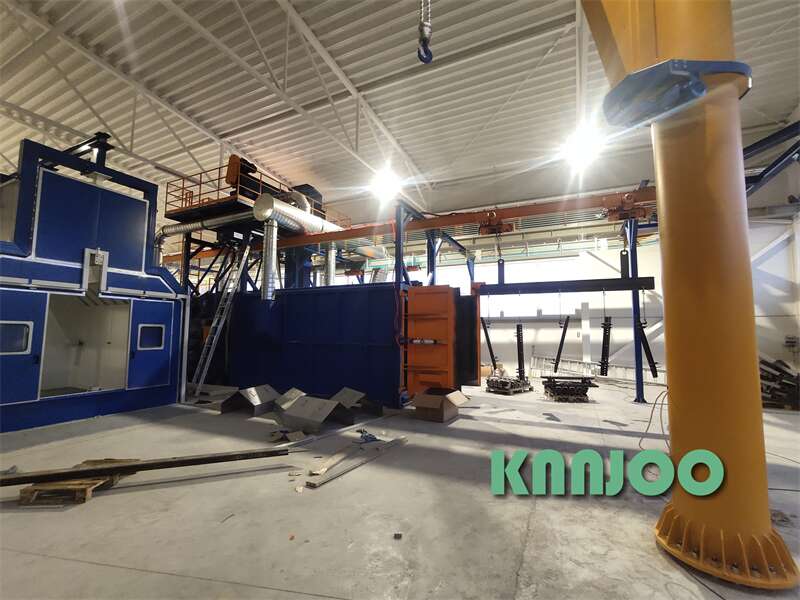

The overhead chain shot blasting machine is a common type of surface treatment equipment. It is mainly used for cleaning and strengthening a large number of easily suspended parts in mass production. The working principle is that the workpiece is hung on the hook and continuously passes through the shot blasting chamber through the conveyor chain. In the shot blasting chamber, the workpiece will be impacted and scoured by the high-speed projected shot, thereby removing rust, oxide scale, dirt and other impurities on the surface and improving the surface quality and fatigue resistance strength of the workpiece.
Technical data
Parameter | HPS-2-15/1112-430 | HPS-2-15/1315-430 | HPS-3-22/1516-430 | HPS-3-22/1521-430 | HPS-4-22/1521-430 |
Turning diameterØ（mm） | 1100 | 1300 | 1500 | 1500 | 1500 |
Hook height （mm） | 1250 | 1500 | 1600 | 2100 | 2100 |
No. Of shot blaster | 2 | 2 | 3 | 3 | 4 |
Power of single shot blater（KW) | 15 (11) | 15 (11) | 22 (15) | 22 (15) | 22 (15) |
Efficient cleaning: It can quickly clean the impurities and rust on the workpiece surface and improve production efficiency.
Uniform treatment: Through the movement of the conveyor chain, the workpiece can be evenly subjected to shot blasting treatment to ensure the consistency of the treatment effect.
Wide application range: It is suitable for the cleaning and strengthening of various easily suspended parts, such as engine blocks, motor housings, gears, etc.
High degree of automation: Usually equipped with an automated control system, it can realize the automatic conveying, shot blasting treatment and unloading of the workpiece, reducing manual operations.
Environmentally friendly and energy-saving: It adopts a closed structure, which can effectively control dust emissions, and the energy consumption of the equipment is relatively low.
FAQ
Q: What is the main purpose of the catenary shot blasting machine?
A: Its main purpose is to clean and strengthen the surface of various workpieces, such as removing rust, scale, and other impurities.
Question: How to choose the appropriate shot for the catenary shot blasting machine?
Answer: It depends on the material and surface requirements of the workpiece. Different shots have different hardness and particle sizes to meet different processing needs.
Question: What are the factors affecting the processing efficiency of the catenary shot blasting machine?
Answer: Factors include the speed of the conveyor chain, the power and number of shot blasting devices, and the settings of the machine parameters.
Question: How to maintain and care for the catenary shot blasting machine?
Answer: Regularly check and maintain the shot blasting device, conveyor chain, dust removal system, etc., and keep the machine clean.
Question: Is the catenary shot blasting machine suitable for all types of workpieces?
Answer: It is mainly suitable for workpieces that are easy to hang and can be transported continuously, but not all workpieces are applicable.
