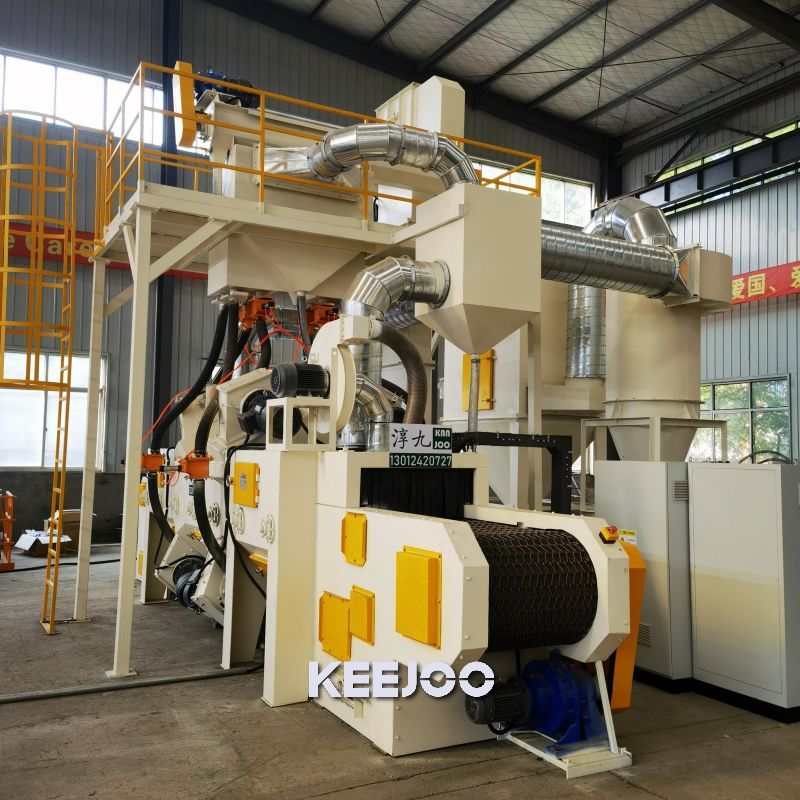

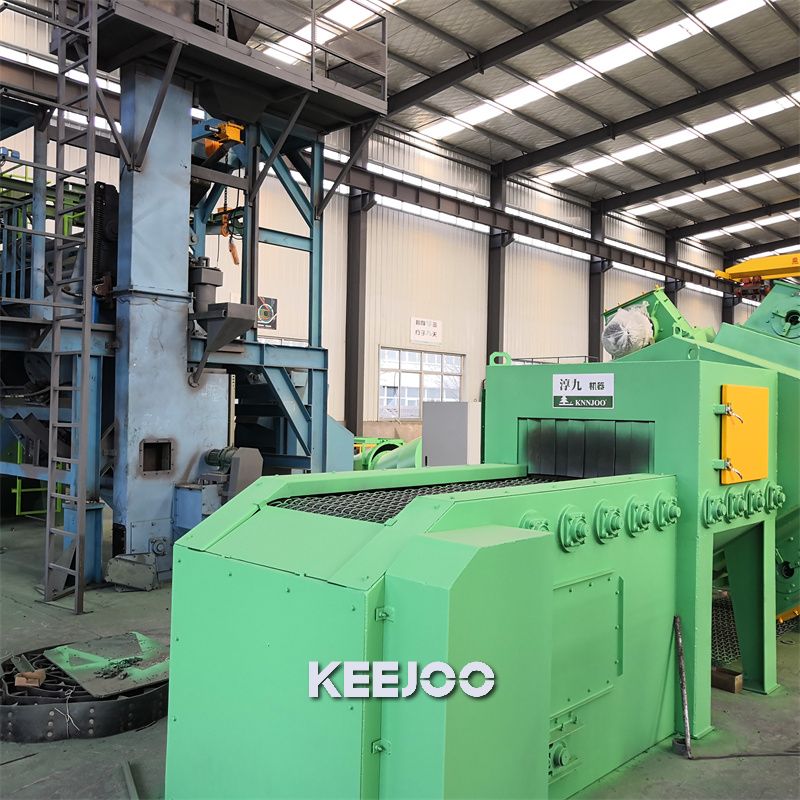

Conveyor Belt Shot Blasting Machine Wire Mesh
Product description
Wire mesh belt shot blasting machine is a commonly used surface treatment equipment, mainly used for cleaning and processing metal, steel, castings, aluminum alloy, copper materials and other workpiece surface, so that it can achieve the ideal finish and roughness.Widely used in steel, casting, aviation, automotive, machinery, petrochemical and other industries, mainly used for cleaning and treatment of various metal, steel, castings, aluminum alloy, copper materials and other workpiece surface.
Technical data
Model | WD 800 | WD 1000 | WD 1800 | WD 1500 | WD 1250 |
Max workpiece width (mm) | 800 | 1000 | 1800 | 1500 | 1250 |
Max workpiece height (mm) | 400 | 500 | 500 | 500 | 500 |
No. Of shot blaster | 4 | 4 | 10 | 10 | 8 |
Power of single shot blaster (kW) | 7.5 (11) | 7.5 (11) | 11 (15) | 7.5 (11) | 18.5 (22) |
Feature
The mesh belt shot blasting machine efficiently eliminates impurities such as oxide scales, rust layers, and welding slag from the surface of workpieces, resulting in a natural metal appearance. It enhances the surface roughness of the workpieces, thereby improving the adhesion of subsequent processes like painting or electroplating. Furthermore, it provides a certain level of reinforcement to the workpieces, enhancing their fatigue strength and corrosion resistance.
FAQ
1: What is the working principle of a mesh belt shot blasting machine?
The machine works by propelling steel shot at high speed onto the surface of workpieces placed on a mesh belt, thereby cleaning and strengthening the workpieces.
2: What types of workpieces are suitable for processing with a mesh belt shot blasting machine?
It is suitable for cleaning and strengthening various types of small and medium-sized workpieces, including castings, forgings, stampings, gears, springs, and more.
3: What should be taken into consideration for maintenance of a mesh belt shot blasting machine?
Regularly inspect the condition of components such as the shot blaster, mesh belt, and hoist for wear and tear. Clean and ｒｅｐｌａｃｅ vulnerable parts promptly and keep the equipment clean.
4: What is the energy consumption of a mesh belt shot blasting machine?
The energy consumption is relatively low, but it depends on the specific specifications of the equipment and the workload.
5: What is the expected lifespan of a mesh belt shot blasting machine?
With normal usage and maintenance, the machine can have a lifespan of several years.
