Shipyard

KNNJOO offers the widest range of surface preparation and engineering solutions

The sheer size of components and steel plates found in the shipping industry demands quite specific engineering capability.

KNNJOO‘s expertise has been tried and tested over many years, and many manufacturers have come to depend on the know-how, reliability and high quality service provided by KNNJOO Group.



Ship Building Steel plate - Pre-heating, blasting, coating, drying

The size of metal sections used in the ship building industry presents great challenges for surface preparation and treatment suppliers. Huge quantities of sheet steel, profiles and fabrications have to be cleaned, treated and painted before final assembly. Corrosion protection is of paramount importance.




The Preservation Line

The first part of the treatment process occurs on a preservation line, which incorporates the different stages of blasting and priming. On the preservation line, sheets and profiles are thoroughly blast cleaned and provided with a temporary corrosion protection coating. Along with the external transport unit, a preservation line consists of a pre-heating oven, a pass-through blasting machine (roller conveyor type), a painting unit and a drying tunnel with its associated slat conveyor. KNNJOO is the only company that offers roller conveyors and preservation lines that can blast 5m wide steel plate at high quality - and we're working on larger sizes.

Treatment Of Fabrications

After the steel sheets have been cleaned, primed, controlled and given a unique ID number, they are conveyed to a fabrication area where huge ship sections are built.

At this stage the welded seams of the fabricated sections must be cleaned (blasted) and given a protective coating in airblast rooms in order to obtain a corrosion protection certificate.

A weight of 100 tonnes or more for such a ship component is commonplace.

Painting And Drying

In the following stage, the final stage of the corrosion prevention process, the fabrications must be painted, this is carried out in huge paint rooms.



Maintenance And Repair (Mobile Blasting Units)
When ships are maintained and repaired in dry docks, sections and newly welded seams must be cleaned and given corrosion protection.

KNNJOO offers a range of Closed Circuit (Open Blast) equipment for this purpose.




Equipment for Shipyard Applications



Delivery:

18weeks+

Technology:

Blast wheel

Preservation Line

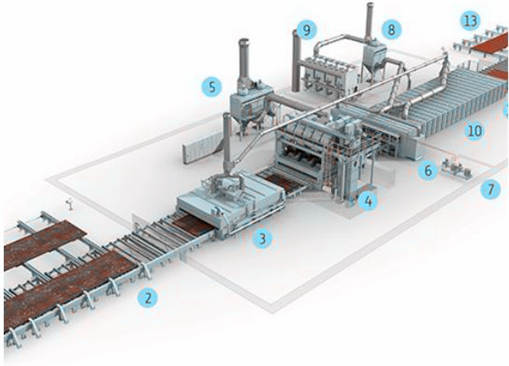

Preservation lines combine the heating (drying), blasting, coating and drying of workpieces such as sheet steel, profiles, pipes or steel structures in one automatic line.

Read More

Delivery:

3weeks+

Technology:

Blast wheel

Closed Circuit Machines

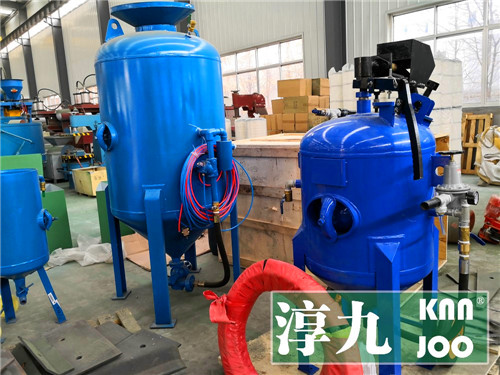

KNNJOO offers a range of pressure fed Closed Circuit Blasting Machines which are designed to be powerful, easy to use, compact and manoeuvrable.。

Read More
